Test 120 exam questions on Principles of Flight (Aeroplane) for Quiz SPL

Change Subject New Test

1 - The right aileron deflects upwards, the left downwards. How does the aircraft react? Rolling to the left, no yawing Rolling to the right, yawing to the left Rolling to the left, yawing to the right Rolling to the right, yawing to the right

2 - Pressure compensation on an wing occurs at the... Wing tips. Leading edge. Trailing edge. Wing roots

3 - What pressure pattern can be observed at a lift-generating wing profile at positive angle of attack? Low pressure is created above, higher pressure below the profile Pressure above remains unchanged, higher pressure is created below the profile High pressure is created above, lower pressure below the profile Pressure below remains unchanged, lower pressure is created above the profile

4 - Which of the following options is likely to produce large induced drag? Large aspect ratio Small aspect ratio Low lift coefficients Tapered wings

5 - Which statement about the airflow around an aerofoil is correct if the angle of attack increases? The stagnation point moves down The center of pressure moves down The center of pressure moves up The stagnation point moves up

6 - What pattern can be found at the stagnation point? The boundary layer starts separating on the upper surface of the profile All aerodynamic forces can be considered as attacking at this single point The laminar boundary layer changes into a turbulent boundary layer Streamlines are divided into airflow above and below the profile

7 - Which effect does a decreasing airspeed have on the induced drag during a horizontal and stable cruise flight? The induced drag will slightly decrease The induced drag will collapse The induced drag will increase The induced drag will remain constant

8 - The glide ratio of a sailplane can be improved by which measures? Higher airplane mass, thin airfoil, taped gaps between wing and fuselage Lower airplane mass, correct speed, retractable gear Cleaning, correct speed, retractable gear, taped gaps between wing and fuselage Forward C.G. position, correct speed, taped gaps between wing and fuselage

9 - Which statement concerning the angle of attack is correct? Increasing the angle of attack results in decreasing lift The angle of attack cannot be negative A too large angle of attack may result in a loss of lift The angle of attack is constant throughout the flight

10 - What is the result of extending flaps with increasing aerofoil camber? Maximum permissable speed increases Minimum speed increases Minimum speed decreases C.G. position moves forward

11 - Which kinds of drag contribute to total drag? Interference drag and parasite drag Induced drag and parasite drag Induced drag, form drag, skin-friction drag Form drag, skin-friction drag, interference drag

12 - Which constructive feature has the purpose to reduce stearing forces? T-tail Differential aileron deflection Vortex generators Aerodynamic rudder balance

13 - Through which factor listed below does the load factor increase during cruise flight? Lower air density A forward centre of gravity Higher aeroplane weight An upward gust

14 - Which of the listed wing shapes has the lowest induced drag? Rectangular shape Trapezoidal shape Elliptical shape Double trapezoidal shape

15 - Bernoulli's equation for frictionless, incompressible gases states that... Total pressure = dynamic pressure - static pressure. Total pressure = dynamic pressure + static pressure. Static pressure = total pressure + dynamic pressure Dynamic pressure = total pressure + static pressure.

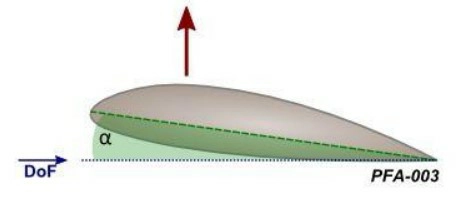

16 - The angle (alpha) shown in the figure is referred to as... See figure (PFA-003) DoF: direction of airflow Siehe Anlage 3

Lift angle. Angle of attack. Angle of incidence. Angle of inclination

17 - The critical angle of attack... Decreases with forward center of gravity position. Changes with increasing weight. Is independent of the weight. Increases with backward center of gravity position.

18 - Which statement describes a situation of static stability? An aircraft distorted by external impact will return to the original position An aircraft distorted by external impact will tend to an even more deflected position An aircraft distorted by external impact will maintain the deflected position An aircraft distorted by external impact can return to its original position by rudder input

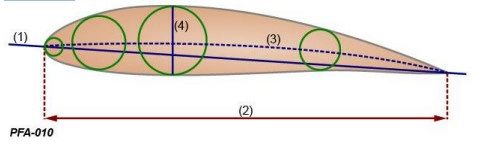

19 - Number 3 in the drawing corresponds to the... See figure (PFA-010) Siehe Anlage 1

Camber line. Thickness. Chord. Chord line.

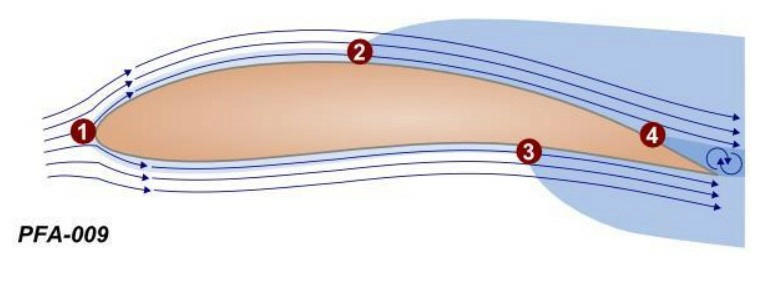

20 - Which point on the aerofoil is represented by number 3? See figure (PFA-009) Siehe Anlage 2

Stagnation point Separation point Center of pressure Transition point

21 - Which parts of an aircraft mainly affect the generation of induced drag? The front part of the fuselage. The outer part of the ailerons. The lower part of the gear. The wing tips.

22 - What is the function of the static rudder balance? To prevent control surface flutter To trim the controls almost without any force To increase the control stick forces To limit the control stick forces

23 - Pressure drag, interference drag and friction drag belong to the group of the... Parasite drag Main resistance. Induced drag. Total drag.

24 - All aerodynamic forces can be considered to act on a single point. This point is called... Center of gravity. Lift point. Transition point. Center of pressure.

25 - What structural item provides lateral stability to an airplane? Wing dihedral Vertical tail Differential aileron deflection Elevator

26 - Considering longitudinal stability, which C.G. position is most dangerous with a normal gliding plane? Position beyond the front C.G. limit Position too far aside permissable C.G. limits. Position far back within permissable C.G. limits Position beyond the rear C.G. limit

27 - Which option states a benefit of wing washout? With the washout the form drag reduces at high speeds Greater hardness because the wing can withstand more torsion forces At high angles of attack the effectiveness of the aileron is retained as long as possible Structurally the wing is made more rigid against rotation

28 - How is the balance of forces affected during a turn? A lower lift force compensates for a lower net force as compared to level flight Lift force must be increased to compensate for the sum of centrifugal and gravitational force The horizontal component of the lift force during a turn is the centrifugal force The net force results from superposition of gravity and centripetal forces

29 - Which design feature can compensate for adverse yaw? Which design feature can compensate for adverse yaw? Differential aileron defletion Full deflection of the aileron Wing dihedral

30 - What describes "wing loading"? Wing area per weight Drag per weight Weight per wing area Drag per wing area

31 - Differential aileron deflection is used to... Reduce wake turbulence. Avoid a stall at low angles of attack. Keep the adverse yaw low. Increase the rate of descent.

32 - Following a single-wing stall and pitch-down moment, how can a spin be prevented? Deflect all rudders opposite to lower wing Rudder opposite lower wing, releasing elevator to build up speed Pushing the elevator to build up speed to re-attach airflow on wings Pulling the elevator to bring the plane back to normal attitude

33 - The drag coefficient... Is proportional to the lift coefficient Increases with increasing airspeed. May range from zero to an infinite positive value Cannot be lower than a non-negative, minimal value.

34 - What structural item provides directional stability to an airplane? Differential aileron deflection Wing dihedral Large elevator Large vertical tail

35 - What has to be considered when operating a sailplane with water ballast? Best glide angle decreases. Significant CG shifts. Best glide speed decreases It should stay below freezing level.

36 - If surrounded by airflow (v > 0), any arbitrarily shaped body produces... Drag and lift. Drag. Lift without drag. Constant drag at any speed.

37 - The angle of attack is the angle between... The chord line and the longitudinal axis of an aeroplane. The chord line and the oncoming airflow. The wing and the fuselage of an aeroplane The undisturbed airflow and the longitudinal axis of an aeroplane.

38 - The aerodynamic rudder balance... Reduces the control surfaces. Delays the stall. Reduces the control stick forces. Improves the rudder effectiveness.

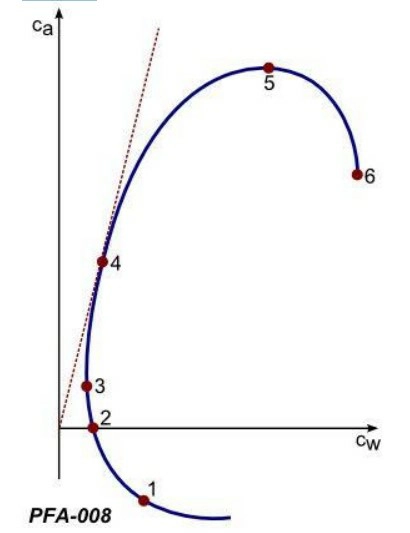

39 - Point number 5 in the figure indicates which flight state? See figure (PFA-008) Siehe Anlage 5

Slow flight Best gliding angle Inverted flight Stall

40 - The critical angle of attack... Increases with a front centre of gravity Is changed by different aircraft weights. Is not changed by different aircraft weights. Decreases with a rear centre of gravity.

41 - What is the diffeence between spin and spiral dive? Spin: stall at inner wing, speed increasing rapidly; Spiral dive: airflow at both wings, speed constant Spin: stall at inner wing, speed constant; Spiral dive: airflow at both wings, speed increasing rapidly Spin: stall at outer wing, speed constant; Spiral dive: airflow at both wings, speed increasing rapidly Spin: stall at outer wing, speed increasing rapidly; Spiral dive: airflow at both wings, speed constant

42 - Number 2 in the drawing corresponds to the... See figure (PFA-010) Siehe Anlage 1

Profile thickness. Chord line. Chord line. Angle of attack.

43 - The trim tab at the elevator is defelected upwards. In which position is the corresponding indicator? Neutral position Nose-down position Nose-up position Laterally trimmed

44 - What has to be considered when operating a sailplane equipped with camper flaps? During approach and landing, camber must not be changed from negative to positive. During approach and landing, camber must not be changed from positive to negative. During winch launch, camber must be set to full negative. During winch launch, camber must be set to full positive.

45 - Point number 1 in the figure indicates which flight state? See figure (PFA-008) Siehe Anlage 5

Inverted flight Slow flight Stall Best gliding angle

46 - Rotation around the vertical axis is called... Slipping. Pitching. Yawing. Rolling.

47 - What engine design at a Touring Motor Glider (TMG) results in least drag? Engine and propeller mounted fix on the fuselage Engine and propeller mounted stowable on the fuselage Engine and propeller mounted fix at the aircraft's nose Engine and propeller mounted fix at the horizontal stabilizer

48 - What effect is referred to as "adverse yaw"? Aileron operation results in a yaw to the desired side due to less drag at the down-deflected aileron Rudder operation results in a rolling moment to the opposite side due to more lift generated by the faster moving wing. Aileron operation results in a yaw to the opposite side due to more drag at the up-deflected aileron Aileron operation results in a yaw to the opposite side due to more drag at the down-deflected aileron

49 - In which way does the position of the center of pressure move at a positively shaped profile with increasing angle of attack? It moves to the wing tips It moves forward until reaching the critical angle of attack It moves forward until reaching the critical angle of attack It moves forward first, then backward

50 - In case of a stall it is important to... Increase the angle of attack and increase the speed. Decrease the angle of attack and increase the speed. Increase the angle of attack and reduce the speed. Increase the bank angle and reduce the speed.

51 - Flying with speeds higher than the never-exceed-speed (vNE) may result in... Reduced drag with increased control forces. An increased lift-to-drag ratio and a better glide angle. Too high total pressure resulting in an unusable airspeed indicator. Flutter and mechanically damaging the wings.

52 - How does a laminar boundary layer differ from a turbulent boundary layer? The laminar boundary layer is thinner and provides more skin-friction drag The turbulent boundary layer can follow the airfoil camber at higher angles of attack The laminar boundary layer produces lift, the turbulent boundary layer produces drag The turbulent boundary layer is thicker and provides less skin-friction drag

53 - Rotation around the lateral axis is called... Yawing. Pitching. Rolling. Stalling.

54 - The center of pressure is the theoretical point of origin of... Only the resulting total drag. Gravity forces of the profile. All aerodynamic forces of the profile. Gravity and aerodynamic forces.

55 - The ratio of span and mean chord length is referred to as... Trapezium shape. Tapering. Aspect ratio. Wing sweep.

56 - What has to be considered with regard to the center of gravity position? By moving the elevator trim tab, the center of gravity can be shifted into a correct position. Only correct loading can assure a correct and safe center of gravity position. The center of gravity's position can only be determined during flight. By moving the aileron trim tab, the center of gravity can be shifted into a correct position.

57 - What leads to a decreased stall speed Vs (IAS)? Lower density Decreasing weight Lower altitude Higher load factor

58 - The static pressure of gases work... In all directions. Only in flow direction. Only in the direction of the total pressure. Only vertical to the flow direction.

59 - Which point on the aerofoil is represented by number 4? See figure (PFA-009) Siehe Anlage 2

Transition point Stagnation point Center of pressure Separation point

60 - In order to improve the stall characteristics of an aircraft, the wing is twisted outwards (the angle of incidence varies spanwise). This is known as... Arrow shape. V-form Geometric washout. Aerodynamic washout.

61 - In straight and level flight with constant performance of the engine, the angle of attack at the wing is... Smaller than in a descent. Greater than in a climb. Greater than at take-off. Smaller than in a climb.

62 - During a stall, the lift... Decreases and drag increases. Increases and drag increases. Decreases and drag decreases Increases and drag decreases.

63 - A sailplane is operated with additional water ballast. How do best gliding angle and speed of best glide change, when compared to flying without water ballast? Best gliding angle descreases, best glide speed decreases. Best gliding angle remains unchanged, best glide speed increases. Best gliding angle remains increases, best glide speed increases. Best gliding angle remains unchanged, best glide speed decreases.

64 - How do induced drag and parasite drag change with increasing airspeed during a horizontal and stable cruise flight? Parasite drag decreases and induced drag increases Induced drag decreases and parasite drag increases Parasite drag decreases and induced drag decreases Induced drag increases and parasite drag increases

65 - What types of boundary layers can be found on an aerofoil? Laminar boundary layer along the complete upper surface with non-separated airflow Turbulent layer at the leading wing areas, laminar boundary layer at the trailing areas Turbulent boundary layer along the complete upper surface with separated airflow Laminar layer at the leading wing areas, turbulent boundary layer at the trailing areas

66 - Stabilization around the lateral axis during cruise is achieved by the... Wing flaps. Horizontal stabilizer Airlerons. Vertical rudder

67 - The pressure compensation between wind upper and lower surface results in ... Induced drag by wing tip vortices Laminar airflow by wing tip vortices. Profile drag by wing tip vortices. Lift by wing tip vortices.

68 - How do lift and drag change when approaching a stall condition? Lift decreases and drag increases Lift and drag increase Lift increases and drag decreases Lift and drag decrease

69 - "Longitudinal stability" is referred to as stability around which axis? Lateral axis Propeller axis Longitudinal axis Vertical axis

70 - At stationary glide and the same mass, what is the difference when using a thick airfoild instead of a thinner airfoil? More drag, same lift Less drag, less lift More drag, less lift Less drag, same lift

71 - When increasing the airflow speed by a factor of 2 while keeping all other parameters constant, how does the parasite drag change approximately? It decreases by a factor of 2 It increases by a factor of 2 It decreases by a factor of 4 It increases by a factor of 4

72 - During approch to the next updraft, the vertical speed indicator reads 3 m/s descent. Within the updraft you expect a mean rate of climb of 2 m/s. According McCready, how should you adjust the speed during approach of the updraft? The McCready ring should be set to 2 m/s, the recommended speed can be read at the McCready scale next to the sum of current rate of descent at expected rate of climb (5 m/s). The McCready ring should be set to 3 m/s, the recommended speed can be read at the McCready scale next to the expected rate of climb (2 m/s). The McCready ring should be set to 2 m/s, the recommended speed can be read at the McCready scale next to the current rate of descent (3 m/s). Outside of thermal cells, the McCready ring should be set to 0 m/s, the recommended speed can be read at the McCready scale next to the current rate of descent (3 m/s).

73 - Which statement regarding a spin is correct? During recovery the ailerons should be kept neutral During the spin the speed constantly increases During recovery the ailerons should be crossed Only very old aeroplanes have a risk of spinning

74 - In a co-ordinated turn, how is the relation between the load factor (n) and the stall speed (Vs)? N is smaller than 1, Vs is greater than in straight and level flight. N is greater than 1, Vs is smaller than in straight and level flight. N is greater than 1, Vs is greater than in straight and level flight. N is smaller than 1, Vs is smaller than in straight and level flight.

75 - Which statement about induced drag during the horizontal cruise flight is correct? Induced drag decreases with increasing airspeed Induced drag has a minimum at a certain speed and increases at higher as well as lower speeds Induced drag has a maximum at a certain speed and decreases at higher as well as lower speeds Induced drag increases with increasing airspeed

76 - The laminar boundary layer on the aerofoil is located between... The stagnation point and the center of pressure. The stagnation point and the transition point. The transition point and the separation point. The transition point and the center of pressure.

77 - What is the advantage of differential aileron movement? The drag of the downwards deflected aileron is lowered and the adverse yaw is smaller The total lift remains constant during aileron deflection The ratio of the drag coefficient to lift coefficient is increased The adverse yaw is higher

78 - Deflecting the rudder to the left causes... Pitching of the aircraft to the left Yawing of the aircraft to the left. Pitching of the aircraft to the right. Yawing of the aircraft to the right.

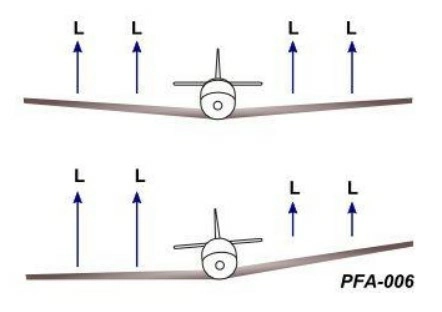

79 - Which constructive feature is shown in the figure? See figure (PFA-006) L: Lift Siehe Anlage 4

Lateral stability by wing dihedral Differential aileron deflection Directional stability by lift generation Longitudinal stability by wing dihedral

80 - Which point on the aerofoil is represented by number 1? See figure (PFA-009) Siehe Anlage 2 Center of pressure Stagnation point Stagnation point Transition point

81 - What is meant by "ground effect"? Decrease of lift and increase of induced drag close to the ground Increase of lift and decrease of induced drag close to the ground Increase of lift and increase of induced drag close to the ground Decrease of lift and decrease of induced drag close to the ground

82 - What is the function of the horizontal tail (among other things)? To stabilise the aeroplane around the longitudinal axis To stabilise the aeroplane around the lateral axis To initiate a curve around the vertical axis To stabilise the aeroplane around the vertical axis

83 - Rudder deflections result in a turn of the aeroplane around the... Rudder axis. Vertical axis. Lateral axis Longitudinal axis.

84 - The elevator moves an aeroplane around the... Vertical axis. Longitudinal axis. Elevator axis. Lateral axis.

85 - What is shown by a profile polar? Ratio between minimum rate of descent and best glide Ratio between total lift and drag depending on angle of attack Ratio of cA and cD at different angles of attack Lift coefficient cA at different angles of attack

86 - Where is interference drag generated? At the ailerons At the the gear At the wing root Near the wing tips

87 - Which statement about the airflow around an aerofoil is correct if the angle of attack decreases? The center of pressure moves aft The center of pressure moves forward The stagnation point moves down The stagnation point remains constant

88 - Extending airbrakes results in ... Less drag and more lift. More drag and less lift. More drag and more lift. Less drag and less lift.

89 - With regard to the forces acting, how can stationary gliding be described? The sum of air forces acts along the direction of air flow The sum the air forces acts along with the lift force The lift force compensates the drag force The sum of air forces compensates the gravity force

90 - Which statement about lift and angle of attack is correct? Increasing the angle of attack too far may result in a loss of lift and an airflow separation Increasing the angle of attack results in less lift being generated by the aerofoil Decreasing the angle of attack results in more drag being generated by the aerofoil Too large angles of attack can lead to an exponential increase in lift
