Exam quiz Performance and flight planning - PPL(A) - Private Pilot License

Question 1

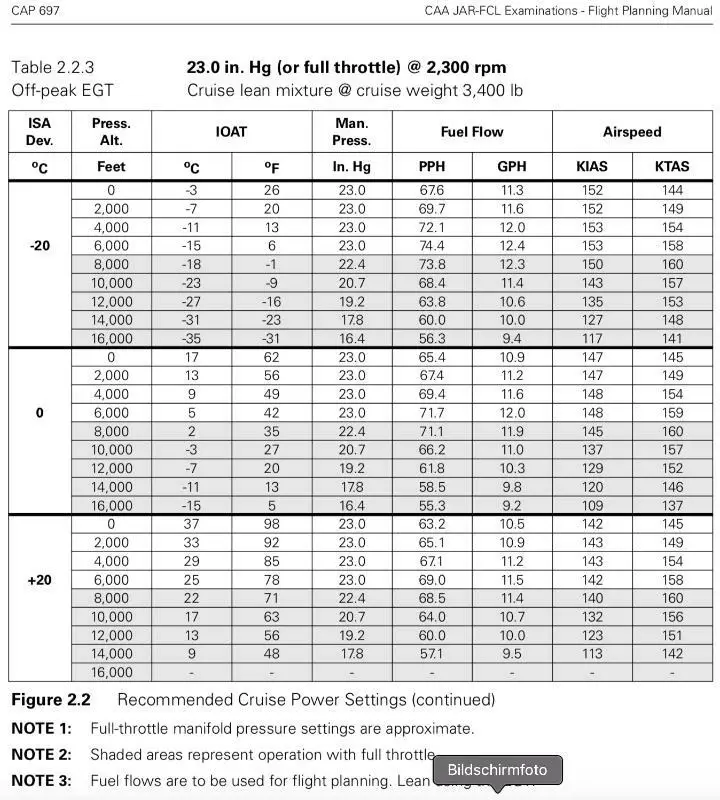

(For this questions use attachment or CAP697 SEP1 Fig. 2.2 Table 2.2.3) For planning a VFR flight, the following data are given: Flight time with planning "overhead-overhead" = 2h 43min Pressure Altitude = 6.500 ft Temperature = ISA-20 Power setting = 2300 RPM Taxi Fuel = 2 USG Additional time for climb = 7 min, Additional time for approach and landing = 10 min The reserve fuel has to be 30% of trip fuel. Determine the minimum block fuel: (2,00 P.) Siehe Anlage 21

Accepted Answer

50.4 USG

Answer

47.3 USG

Answer

43.8 USG

Answer

39.2 USG

Question 2

How much taxi fuel must be consumed before take-off to reduce the aircraft mass to the maximum take-off mass? Maximum ramp mass (MRM): 1150 kg Actual ramp mass: 1148 kg Maximum take-off mass (MTOM): 1145 kg

Accepted Answer

4 L

Answer

2 L

Answer

3 L

Answer

5 L

Question 3

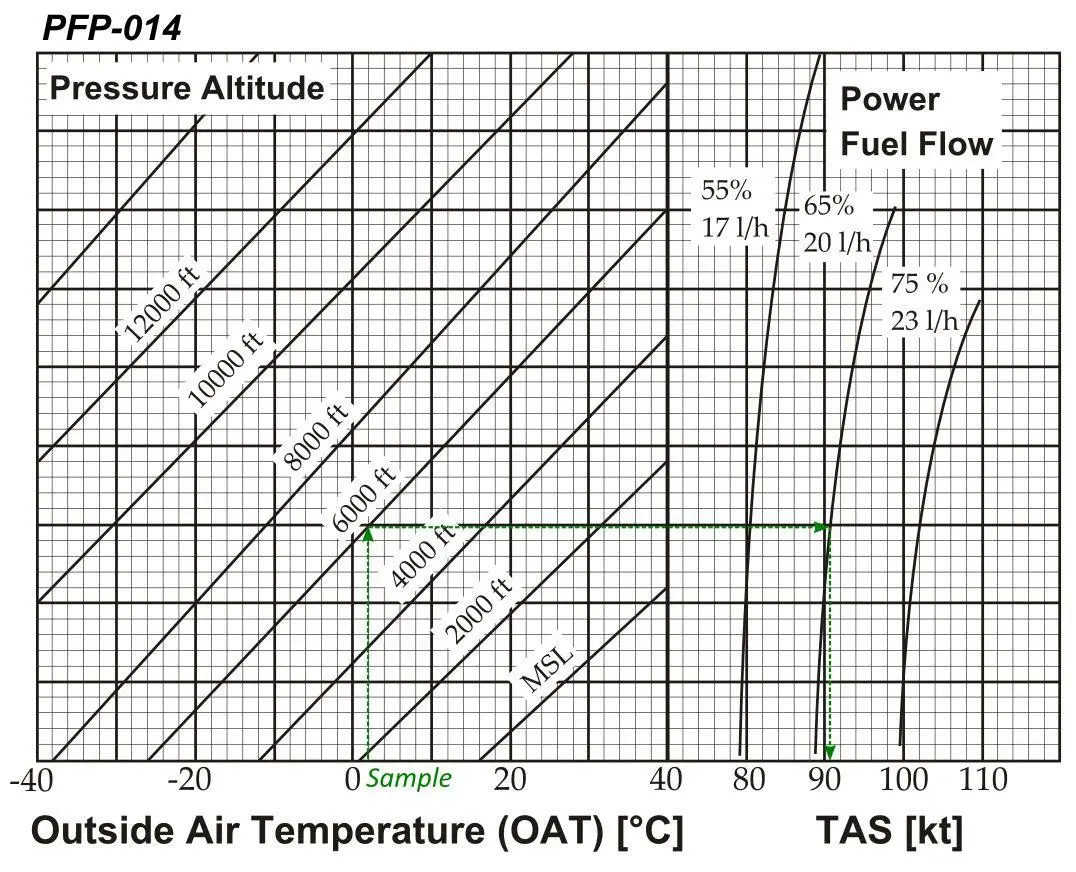

Given the following conditions, the TAS equals... Outside air temperature: 10° C Pressure altitude: 6000 ft Power: 65 % See annex (PFP-014) (1,00 P.) Siehe Anlage 13

Accepted Answer

92 kt

Answer

96 kt.

Answer

88 kt.

Answer

100 kt.

Question 4

The speed VFE is defined as...

Accepted Answer

Stalling or minimum steady flight speed with the flaps retracted.

Answer

Stalling or minimum steady flight speed with the flaps extended.

Answer

Maximum landing gear extended speed

Question 5

The VFR semicircular rules are based on the...

Accepted Answer

Magnetic course (MC).

Answer

True course (TC).

Answer

Magnetic heading (MH)

Answer

True heading (TH).

Question 6

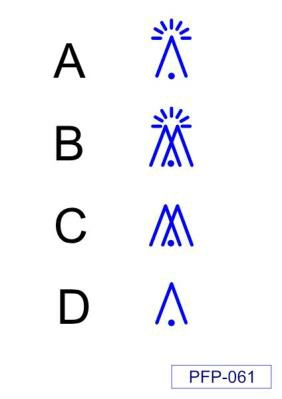

(For this question, please use annex PFP-061) According ICAO, what symbol indicates a group of unlighted obstacles? (2,00 P.) Siehe Anlage 22

Accepted Answer

C

Answer

B

Answer

A

Answer

D

Question 7

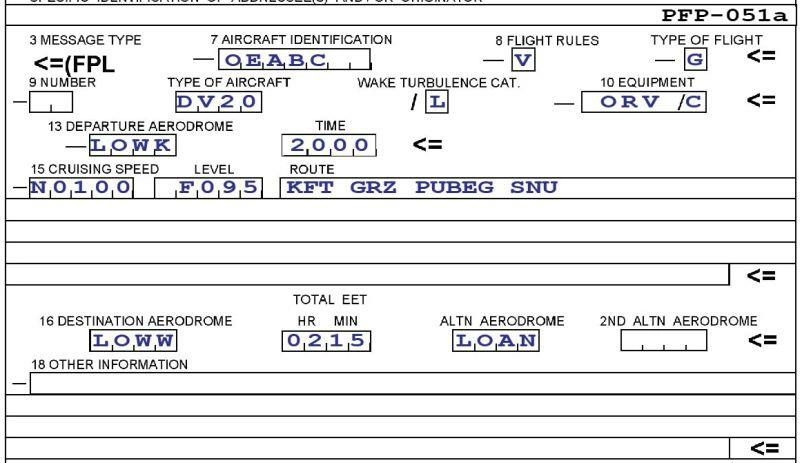

What is the nature of the flight shown in the given ATC flight plan? See annex (PFP-051a) (1,00 P.) Siehe Anlage 19

Accepted Answer

Night flight under visual flight rules.

Answer

Flight under instrument flight rules.

Answer

Traffic pattern under visual flight rules.

Answer

Border crossing flight.

Question 8

For the purpose of a flight preparation, the pilot calculates a total take-off mass of 750 kg and a total moment of 625 mmkg. Which cross marks the center of gravity (CG)? See annex (PFP-003) (1,00 P.) Siehe Anlage 3

Accepted Answer

1

Answer

4

Answer

2

Answer

3

Question 9

The angle of descent is defined as...

Accepted Answer

The angle between a horizontal plane and the actual flight path, expressed in degrees [°].

Answer

The ratio between the change in height and the horizontal distance travelled within the same time, expressed in percent [%]

Answer

The ratio between the change in height and the horizontal distance distance travelled within the same time, expressed in degrees [°].

Answer

The angle between a horizontal plane and the actual flight path, expressed in percent [%].

Question 10

The speed VS0 is defined as...

Accepted Answer

Stalling speed or minimum steady flight speed in landing configuration.

Answer

Maximum landing gear extended speed

Answer

Stalling speed or minimum steady flight speed obtained in a specific configuration.

Question 11

A pilot wants to take off on runway 36, the reported wind is 240 degrees, 12 knots. What is the value of the wind components acting on the aircraft on take-off and landing?

Accepted Answer

Crosswind from the left 10.4 kt. Tailwind 6 kt.

Answer

Crosswind from the right 10.4 kt. Tailwind 6 kt.

Answer

Crosswind from the left 6 kt. Tailwind 10.4 kt.

Answer

Crosswind from the right 6 kt. Headwind 10.4 kt.

Question 12

The term "moment" with regard to a mass and balance calculation is referred to as...

Accepted Answer

Product of a mass and a balance arm.

Answer

Sum of a mass and a balance arm.

Answer

Quotient of a mass and a balance arm.

Answer

Difference of a mass and a balance arm

Question 13

Considering the following fuel data, how much trip fuel is required? Fuel for start-up and taxi: 5 L Fuel for take-off and climb: 12 L Fuel for cruise flight: 25 L Fuel for descent, approach and landing: 7 L Fuel for taxi and parking: 3 L Fuel to alternate: 13 L Final reserve fuel: 10 L

Accepted Answer

44 L

Answer

75 L

Answer

52 L

Answer

49 L

Question 14

Given the following conditions, the TAS equals... Outside air temperature: -2° C Pressure altitude: 8000 ft Power: 75 % See annex (PFP-014) (1,00 P.) Siehe Anlage 13

Accepted Answer

104 kt

Answer

100 kt.

Answer

95 kt.

Answer

110 kt

Question 15

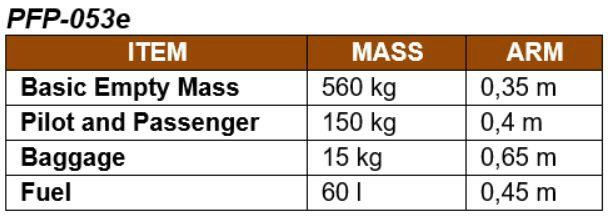

The position of the center of gravity (including fuel) equals... See figure(PFP-053e) (1,00 P.) Siehe Anlage 2

Accepted Answer

37.1 cm

Answer

0.401 m

Answer

37.3 cm

Answer

0.403 m.

Question 16

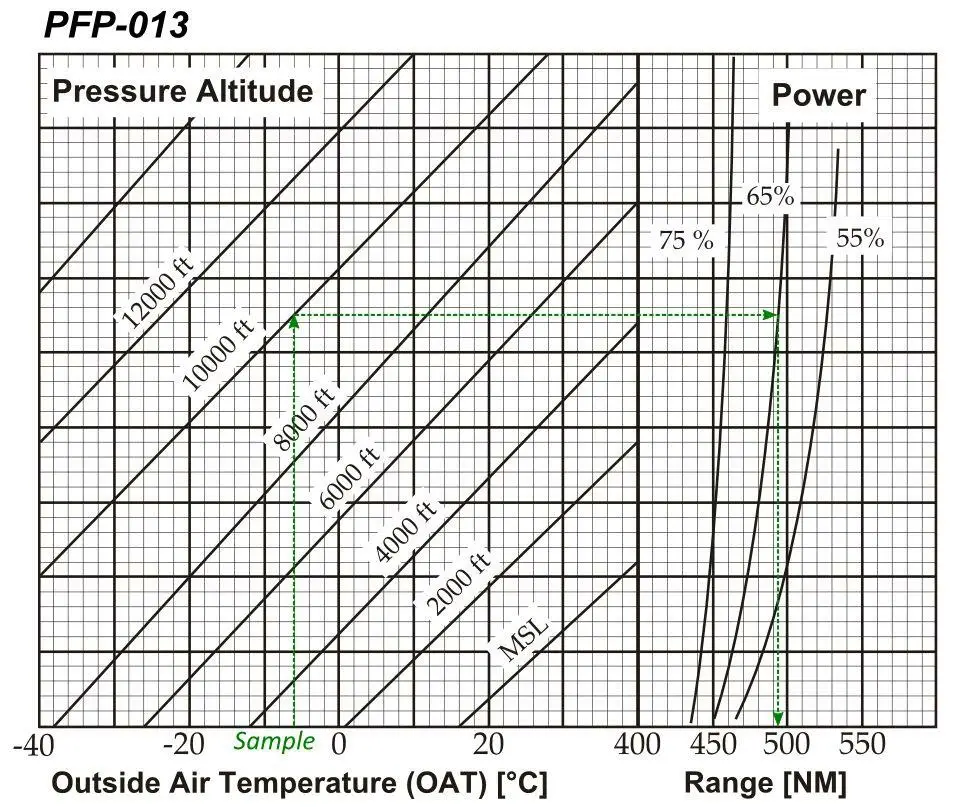

What range can be achieved at the following conditions? Outside air temperature: 6° C Pressure Altitude: 6000 ft Power: 65 % See annex (PFP-013) (1,00 P.) Siehe Anlage 12

Accepted Answer

482 NM

Answer

457 NM

Answer

503 NM

Answer

444 NM

Question 17

Which section of the flight manual describes the basic empty mass of an aircraft?

Accepted Answer

Weight and balance

Answer

Normal procedures

Answer

Limitations

Answer

Performance

Question 18

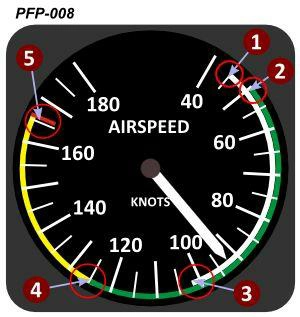

The beginning of the green arc (2) indicates which airspeed? See figure (PFP-008) (1,00 P.) Siehe Anlage 8

Accepted Answer

VS1: Stall speed with flaps up

Answer

VS0: Stall speed in landing configuration

Answer

VFE: Maximum flap extended speed

Answer

VNO: Maximum speed for normal operations

Question 19

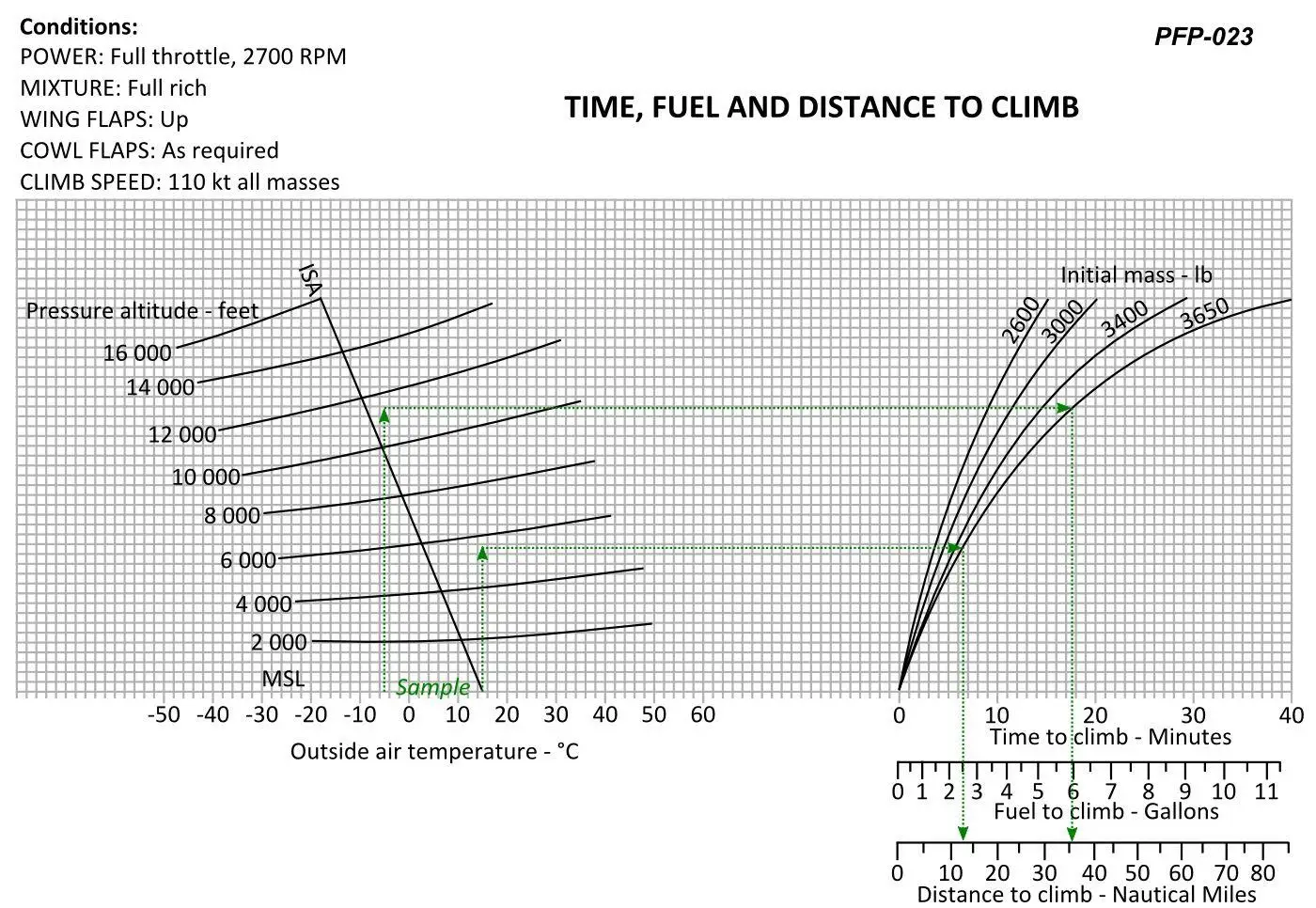

What is the required distance to climb to flight level (FL) 75 after a departure from an airfield which is located at a pressure altitude of 3000 ft with an initial mass of 3000 lbs? OAT at airfield: 25° C OAT in FL 75: 0° C See annex (PFP-023) (1,00 P.) Siehe Anlage 14

Accepted Answer

7 NM

Answer

10 NM

Answer

6 NM

Answer

4 NM

Question 20

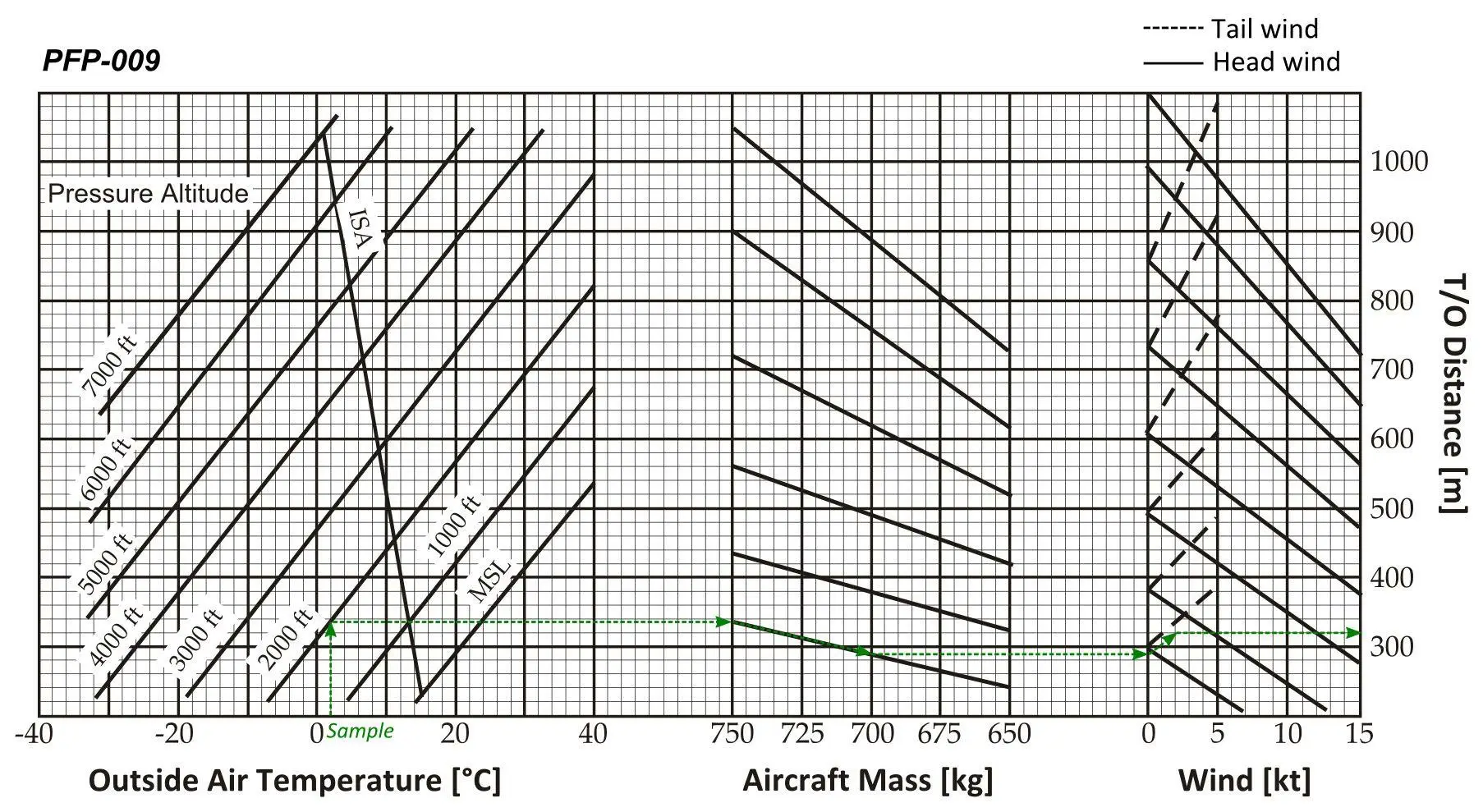

Given the following conditions, the take-off distance equals... Outside air temperature: -20° C Pressure Altitude: 5000 ft Aeroplane mass: 750 kg Headwind: 10 kt

Accepted Answer

380 m

Answer

450 m.

Answer

410 m

Answer

310 m.

Question 21

How does aircraft flap configuration influence the take-off performance?

Accepted Answer

A higher flap setting decreases ground roll and lift-off speed, but also climb performance

Answer

A higher flap setting decreases ground roll and increases lift-off speed and climb performance

Answer

A higher flap setting decreases ground roll and lift-off speed and increases climb performance

Answer

A higher flap setting increases ground roll, lift-off speed, and climb performance

Question 22

The density of AVGAS 100LL at 15° C is...

Accepted Answer

0.72 kg/l

Answer

0.68 kg/l.

Answer

1.0 kg/l.

Answer

0.82 kg/l.

Question 23

The result of a front C.G. position is: 1. Increase in stability. 2. Increase in fuel consumption. 3. Increase in stall speed. 4. Increase in range.

Accepted Answer

1, 2, 3

Answer

2. 4

Answer

1, 2

Answer

2, 3, 4

Question 24

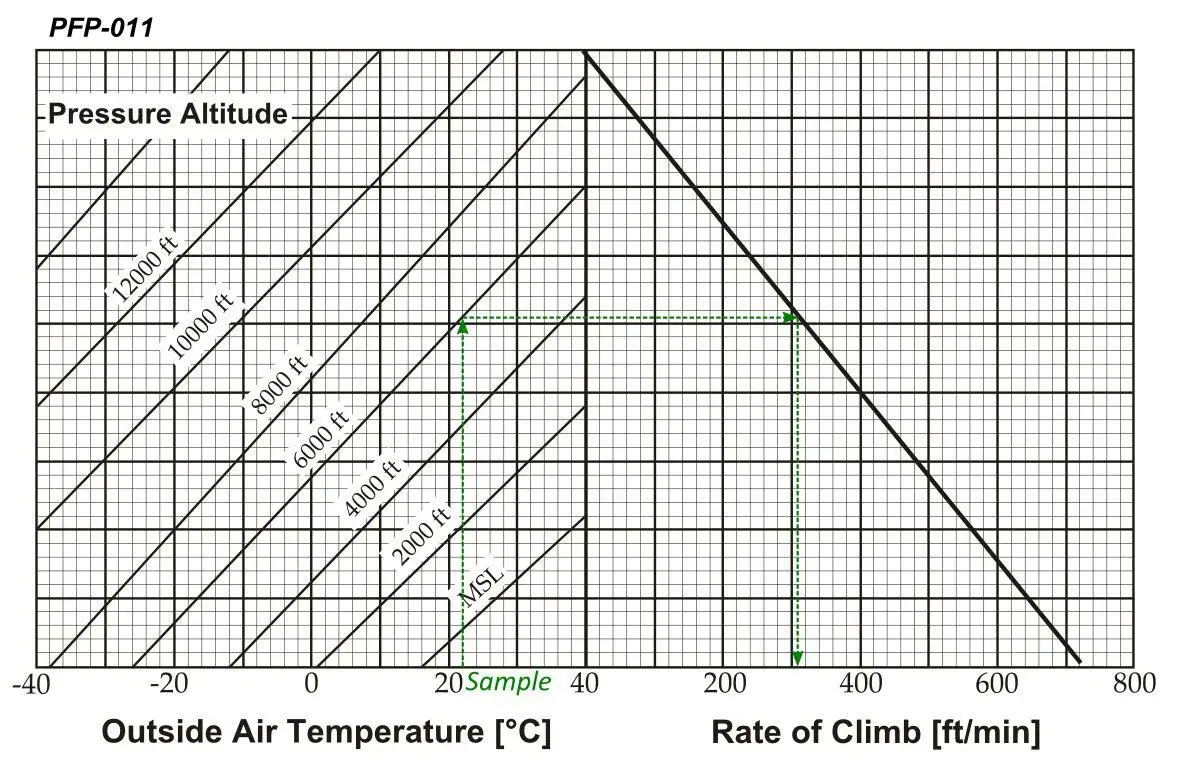

Which is the maximum rate of climb for the aircraft at 6500 ft pressure altitude and an OAT of 0° C? See annex (PFP-011) (1,00 P.) Siehe Anlage 11

Accepted Answer

480 ft / min

Answer

400 ft / min

Answer

520 ft / min

Answer

800 ft / min

Question 25

Given the following data for a VFR flight: Trip fuel = 70 US gallons Contingency fuel = 5% of trip fuel. Alternate and final reserve fuel = 20 US gallons Usable fuel at take-off = 90 US gallons After half of the distance you read that you have consumed 30 US gallons. Assume that fuel flow remains unchanged. Which statement is correct?

Accepted Answer

Upon landing 10.0 US gallons will remain in addition to alternate and final reserve fuel.

Answer

The remaining fuel is insufficient for a landing at destination with alternate and final reserve fuel remaining.

Answer

Upon landing 30.0 US gallons will remain in addition to alternate and final reserve fuel.

Answer

Upon landing a total of 10.0 US gallons will remain

Question 26

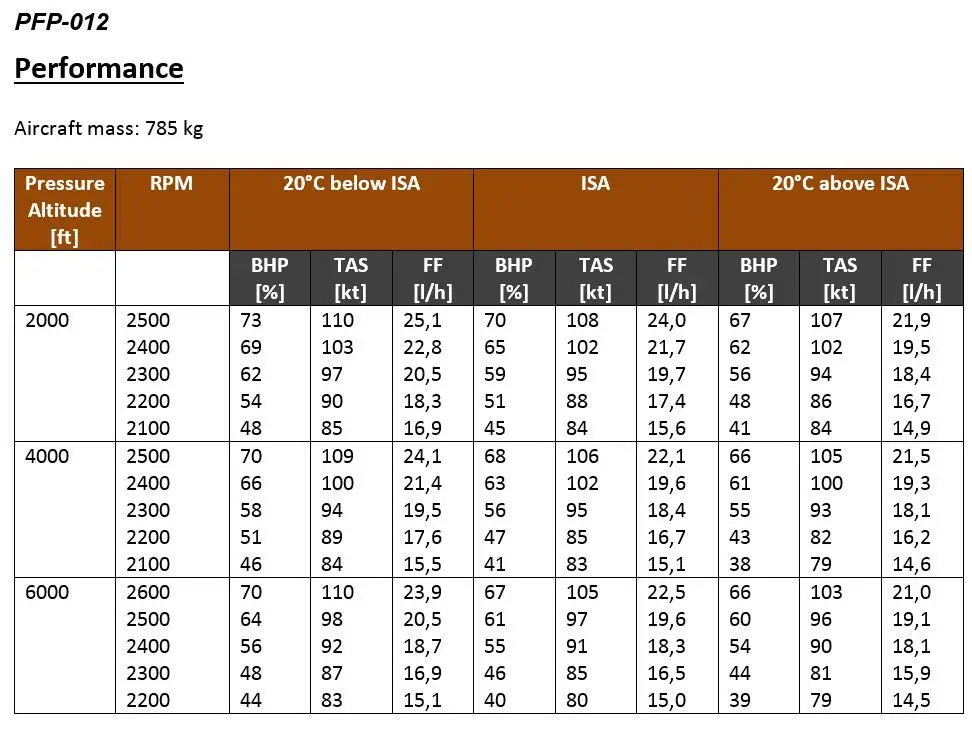

What is the true airspeed (TAS) [kt] and fuel consumption [l/h] for cruise flight with 60 % power in flight level 60 under the following conditions? Temperature: ISA - 20° C QNH: 980 hPa See annex (PFP-012) (2,00 P.) Siehe Anlage 10

Accepted Answer

95 kt. 19.6 l/h.

Answer

96 kt. 19.1 l/h.

Answer

110 kt. 25.1 l/h.

Answer

95,75 kt. 19.8 l/h.

Question 27

Which maximum rate of climb can the aircraft reach at 9000 ft pressure altitude and OAT 12° C? See annex (PFP-011) (1,00 P.) Siehe Anlage 11

Accepted Answer

200 ft/min

Answer

250 ft/min

Answer

350 ft/min

Answer

300 ft/min

Question 28

The balance arm is the horizontal distance between...

Accepted Answer

The C.G. of a mass and the datum line

Answer

The front C.G. limit and the datum line

Answer

The C.G. of a mass and the rear C.G. limit

Answer

The front C.G. limit and the rear C.G. limit

Question 29

The term "balance arm" in the context of a mass and balance calculation defines the...

Accepted Answer

Distance from the datum to the center of gravity of a mass.

Answer

Distance of a mass from the center of gravity.

Answer

Point on the longitudinal axis of an aeroplane or its extension from which the centers of gravity of all masses are referenced.

Answer

Point through which the force of gravity is said to act on a mass.

Question 30

What is the true airspeed (TAS) [kt] and fuel consumption [l/h] for cruise flight with 70 % power in flight level 60 under the following conditions? Temperature: ISA - 20° C QNH: 980 hPa See annex (PFP-012) (2,00 P.) Siehe Anlage 10

Accepted Answer

110 kt. 23.9 l/h.

Answer

100 kt. 19.3 l/h.

Answer

95 kt. 19.6 l/h.

Answer

105 kt. 21.5 l/h

Question 31

During a flight with a flight plan submitted, landing is conducted at an airfield other than the destination stated in the filed flight plan. Who has to be contacted by the pilot immediately?

Accepted Answer

Aeronatical Information Service (AIS).

Answer

Local office for aereal supervision

Answer

The flight manager on duty

Answer

The police department.

Question 32

Which climb speed may be used to optimize the rate of climb (e.g. to reach a desired altitude within minimum time)?

Accepted Answer

Vy, the best rate of climb speed

Answer

Vy, the best angle of climb speed

Answer

Vx, the best rate of climb speed

Answer

Vx, the best angle of climb speed

Question 33

The speed Vy is defined as...

Accepted Answer

Best distance of climb.

Answer

Best speed of climb.

Answer

Best angle of climb.

Question 34

An aircraft must be loaded and operated in such a way that the center of gravity (CG) stays within the approved limits during all phases of flight. This is done to ensure...

Accepted Answer

Both stability and controllability of the aircraft.

Answer

That the aircraft does not exceed the maximum permissible airspeed during a descent.

Answer

That the aircraft does not stall.

Answer

That the aircraft does not tip over on its tail while it is being loaded.

Question 35

Baggage and cargo must be properly stowed and fastened, otherwise a shift of the cargo may cause...

Accepted Answer

Uncontrollable attitudes, structural damage, risk of injuries.

Answer

Continuous attitudes which can be corrected by the pilot using the flight controls.

Answer

Structural damage, angle of attack stability, velocity stability

Answer

Calculable instability if the C.G. is shifting by less than 10 %.

Question 36

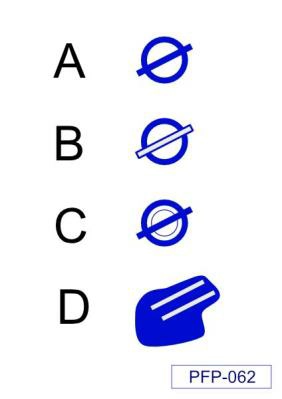

(For this question, please use annex PFP-062) According ICAO, what symbol indicates a civil airport (not international airport) with paved runway? (2,00 P.) Siehe Anlage 23

Accepted Answer

A

Answer

D

Answer

B

Answer

C

Question 37

Given the following data for a VFR flight: Take-off fuel: 180 kg including reserve fuel, which is 30% of take off fuel. After half of the distance the remaining fuel is 100 kg. Assume that cruise conditions will remain unchanged. Determine the remaining fuel at the destination:

Accepted Answer

20 kg

Answer

80 kg

Answer

40 kg

Answer

10 kg

Question 38

The term "maximum elevation figure" (MEF) is defined as...

Accepted Answer

The highest elevation within an area covering 30 minutes of latitude and 30 minutes of longitude plus a safety margin, rounded to the next higher 100 ft.

Answer

The highest elevation within an area covering 30 minutes of latitude and 30 minutes of longitude.

Answer

The highest elevation within an area covering 30 minutes of latitude and 30 minutes of longitude plus a safety margin of 1000 ft (305 m), rounded to the next higher 100 ft

Answer

The highest elevation within an area covering 1 degree of latitude and 1 degree of longitude plus a safety margin, rounded to the next lower 100 ft.

Question 39

Given the following data: Take-Off fuel = 200 lbs Alternate fuel = 40 lbs Final reserve fuel = 30 lbs After 25 minutes the remaining fuel is 120 lbs. Assuming that fuel flow will remain unchanged, the remaining time to the destination should not exceed:

Accepted Answer

15.6 min

Answer

37.5 min

Answer

20.0 min

Answer

59.4 min

Question 40

Loads must be adequately secured in order to...

Accepted Answer

Avoid any centre of gravity (C.G.) movements

Answer

Carry extra fuel

Answer

Allow steep turns

Answer

Prevent excessive 'g'-loading during the landing flare

Question 41

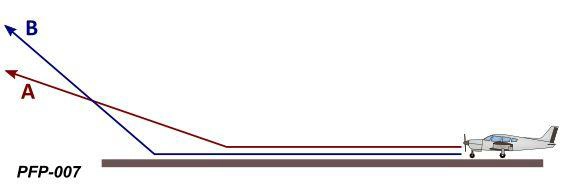

How does the aircraft configuration influence take-off performance while all other parameters remaining constant? See figure (PFP-007) (1,00 P.) Siehe Anlage 7

Accepted Answer

Aircraft A has a higher flap setting than aircraft B

Answer

Aircraft B has a higher tyre pressure than aircraft A

Answer

Aircraft A has a higher tyre pressure than aircraft B

Answer

Aircraft B has a higher flap setting than aircraft A

Question 42

Given values: Calculated take-off mass = 746 kg calculated CG = 37.1 cm fuel burn = 30.5 l on station 45 cm. Where is the CG situated after the landing?

Accepted Answer

36.9 cm

Answer

37.2 cm

Answer

37.5 cm

Answer

36.3 cm

Question 43

The conversion factor from kilogram [kg] into pounds [lb] is...

Accepted Answer

Kg x 2.205 = lb.

Answer

Kg x 2 = lb.

Answer

Kg / 2.205 = lb.

Answer

Kg x 0.454 = lb

Question 44

For a take-off from runway 22 and a reported wind of 250°/10 kt, the longitudinal wind component equals...

Accepted Answer

9 kt headwind.

Answer

9 kt tailwind

Answer

5 kt tailwind.

Question 45

Which factor shortens landing distance?

Accepted Answer

Strong head wind

Answer

High pressure altitude

Answer

Heavy rain

Answer

High density altitude

Question 46

What is the required fuel to climb from FL 65 to FL 95 under the following conditions? Aircraft mass: 3000 lb. OAT in FL 65: -5° C OAT in FL 95: -15° C See annex (PFP-023) (1,00 P.) Siehe Anlage 14

Accepted Answer

1 GAL

Answer

2 GAL

Answer

6 GAL

Answer

3 GAL

Question 47

It is possible that the surface wind speed at an airport is reduced due to friction. When a surface area with a minor tailwind condition is left during the initial climb, the pilot might expect...

Accepted Answer

A decrease in airspeed and rate of climb due to increasing tailwind.

Answer

An increase in airspeed and rate of climb due to decreasing tailwind

Answer

A deacrease in airspeed and climb performance due to decreasing tailwind

Answer

An increase in airspeed and rate of climb due to increasing tailwind.

Question 48

The upper limit of LO R 4 equals... See annex (PFP-030) (1,00 P.) Siehe Anlage 16

Accepted Answer

4.500 ft MSL.

Answer

4.500 ft AGL

Answer

1.500 ft MSL.

Answer

1.500 ft AGL

Question 49

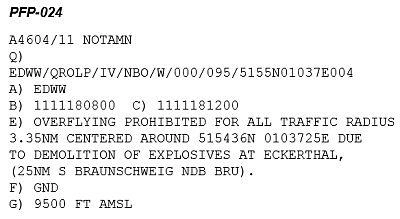

Up to which altitude is an overflight prohibited according to the NOTAM? See figure (PFP-024) (1,00 P.) Siehe Anlage 18

Accepted Answer

Altitude 9500 ft MSL

Answer

Height 9500 ft

Answer

Altitude 9500 m MSL

Answer

Flight Level 95

Question 50

During a flight, a flight plan can be filed at the...

Accepted Answer

Flight Information Service (FIS).

Answer

Search and Rescue Service (SAR).

Answer

Next airport operator en-route.

Answer

Aeronautical Information Service (AIS).

Question 51

Given the following conditions, the climb speed equals... Outside air temperature: -20° C Pressure altitude: 10000 ft See annex (PFP-011) (1,00 P.) Siehe Anlage 11

Accepted Answer

450 ft/min.

Answer

200 ft/min

Answer

350 ft/min.

Answer

390 ft/min

Question 52

Calculated take-off mass = 1082 kg, calculated CG = 0.254 m, fuel burn = 55 l on station 0.40 m. Where is the CG situated after the landing?

Accepted Answer

24.8 cm

Answer

24.6 cm

Answer

25.2 cm

Answer

25.4 cm

Question 53

The term "steady flight" is defined as...

Accepted Answer

Unaccelerated flight. The four forces thrust, drag, lift, and weight are in equilibrium.

Answer

Flight with a steady power setting without changing course

Answer

Climb or descent with a constant climb or descent rate in calm weather conditions.

Answer

Flight in smooth air without turbulence and a perfectly trimmed aircraft.

Question 54

(For this questions use attachment or CAP697 SEP1 Fig. 2.2 Table 2.2.3) For planning a VFR flight, the following data are given: Flight time with planning "overhead-overhead" = 2h 42min Pressure Altitude = 7.500 ft Temperature = ISA Power setting = 2300 RPM Taxi Fuel = 2 USG Additional time for climb = 8 min, Additional time for approach and landing = 10 min The reserve fuel has to be 30% of trip fuel. Determine the minimum block fuel: (2,00 P.) Siehe Anlage 21

Accepted Answer

48.4 USG

Answer

51.8 USG

Answer

37.7 USG

Answer

46.4 USG

Question 55

At which airspeed do you climb to flight level (FL) 75 after a departure from an airfield which is located at a pressure altitude of 3000 ft with an initial mass of 3000 lbs? OAT at airfield: 25° C OAT in FL 75: 0° C See annex (PFP-023) (1,00 P.) Siehe Anlage 14

Accepted Answer

110 kt

Answer

90 kt

Answer

120 kt

Answer

100 kt

Question 56

Calculated take-off mass = 2300 lbs, calculated CG = 95.75 in, fuel burn = 170 lbs on station 87.00 in. Where is the CG situated after the landing?

Accepted Answer

96.45 in

Answer

97.39 in

Answer

94.11 in

Answer

96.57 in

Question 57

The red marking at the end of the yellow arc (5) indicates which airspeed? See figure (PFP-008) (1,00 P.) Siehe Anlage 8

Accepted Answer

VNE: Never-exceed speed

Answer

VNO: Maximum speed for normal operations

Answer

VFE: Maximum flap extended speed

Answer

VS1: Stall speed with flaps up

Question 58

What is the fuel flow and the true airspeed for cruise flight with 60 % power in flight level 85 at an OAT of -25° C? See annex (PFP-014) (1,00 P.) Siehe Anlage 13

Accepted Answer

Fuel flow: 18.5 l. TAS: 85 kt.

Answer

Fuel flow: 17 l. TAS: 81 kt.

Answer

Fuel flow: 17.5 l. TAS: 83 kt

Answer

Fuel flow: 20 l. TAS: 89 kt.

Question 59

How does wind affect the take-off performance?

Accepted Answer

Tailwind reduces the relative wind on the airfoil. The take-off distance will increase

Answer

Tailwind aids the aircraft in overcoming the initial drag at the commencement of the take-off roll. The take-off distance will decrease

Answer

Headwind causes an increased airflow around the wing. The take-off distance will increase

Answer

Headwind imposes an increased drag on the aircraft. The take-off distance will increase

Question 60

The total weight of an aeroplane is acting vertically through the...

Accepted Answer

Center of gravity.

Answer

Stagnation point.

Answer

Neutral point.

Answer

Center of pressure.

Question 61

Given the following data for a VFR flight: Trip fuel = 70 US gallons Contingency fuel = 5% of trip fuel Alternate and final reserve fuel = 20 US gallons Usable fuel at take-off = 95 US gallons After half of the distance you read that you have consumed 40 US gallons. Assume that fuel flow remains unchanged. Which statement is correct?

Accepted Answer

The remaining fuel is insufficient for a landing at destination with alternate and final reserve fuel remaining.

Answer

Upon landing 15.0 US gallons will remain in addition to alternate and final reserve fuel.

Answer

Upon landing 5.0 US gallons will remain in addition to alternate and final reserve fuel

Answer

Upon landing, a total of 40.0 US gallons will remain.

Question 62

(For this questions, use attachment or CAP697 SEP1 Fig. 2.2 Table 2.2.3) Planning a flight from EDWH (Oldenburg Hatten) to EDWF (Leer Papenburg), the following conditions apply: Cruise level = FL 65 Temperature = ISA+20 Cruise weight = 3400 lbs Power setting = 23.0 in. HG @ 2300 RPM What Indicated Airspeed (IAS) and Fuel Flow (FF) can be expected? (2,00 P.) Siehe Anlage 21

Accepted Answer

IAS = 142 kt FF = 11.5 GPH

Answer

IAS = 145 kt FF = 11.9 GPH

Answer

IAS = 158kt FF = 11.5 GPH

Answer

IAS = 150 kt FF = 12.3 GPH

Question 63

The required data for a mass and balance calculation including masses and balance arms can be found in the...

Accepted Answer

Mass and balance section of the pilot's operating handbook of this particular aircraft

Answer

Performance section of the pilot's operating handbook of this particular aircraft

Answer

Documentation of the annual inspection.

Answer

Certificate of airworthiness.

Question 64

When preparing to carry out the weighing procedure on an aircraft, which of the following is required?

Accepted Answer

Drain all useable fuel

Answer

Drain all engine tank oil

Answer

Remove service equipment

Answer

Remove the batteries

Exam simulation Performance and flight planning PPL(A) - Private Pilot License

Exam simulation PPL(A) EN Performance and flight planning 120 questions on 120 minutes
