Flight Planning and Monitoring - ATPL - Airline Transport Pilot license

Question 1

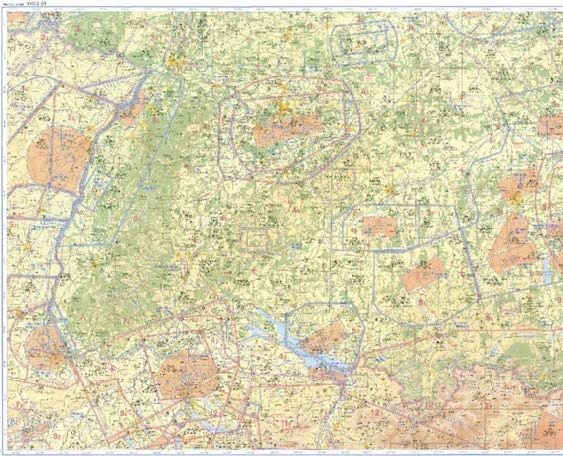

Refer to the General Student Pilot Route Manual ED-4: Flying VFR from PEITING (47°48.0'N, 010°55.5'E) to IMMENSTADT (47°33.5'N, 010°13.0'E). Determine the minimum altitude within a corridor 5 NM left and 5 NM right of the course line in order to stay 1000 ft clear of obstacles.

Accepted Answer

6900'

Answer

5500'

Answer

6600'

Answer

5300'

Question 2

See Flight Planning Manual SEP 1 Figure 2.5. Given: FL 75, Lean mixture, Full throttle, 2300 RPM. Take-off fuel: 444 lbs, Take-off from MSL. Find: Endurance in hours and minutes.

Accepted Answer

05 hours 12 minutes

Answer

05 hours 23 minutes

Answer

04 hours 42 minutes

Answer

05 hours 20 minutes

Question 3

Refer to the General Student Pilot Route Manual - VFR Chart ED-4. Which navigation aid is located in position 48°30'N, 007°34'E?

Accepted Answer

VOR/DME

Answer

NDB

Answer

TACAN

Answer

VOR

Question 4

In the cruise at FL 155 at 260 kt TAS, the pilot plans for a 500 feet/min descent in order to fly overhead MAN VOR at 2000 feet (QNH 1030). TAS will remain constant during descent, wind is negligible, temperature is standard. The pilot must start the descent at a distance from MAN of:

Accepted Answer

120 NM

Answer

110 NM

Answer

140 NM

Answer

130 NM

Question 5

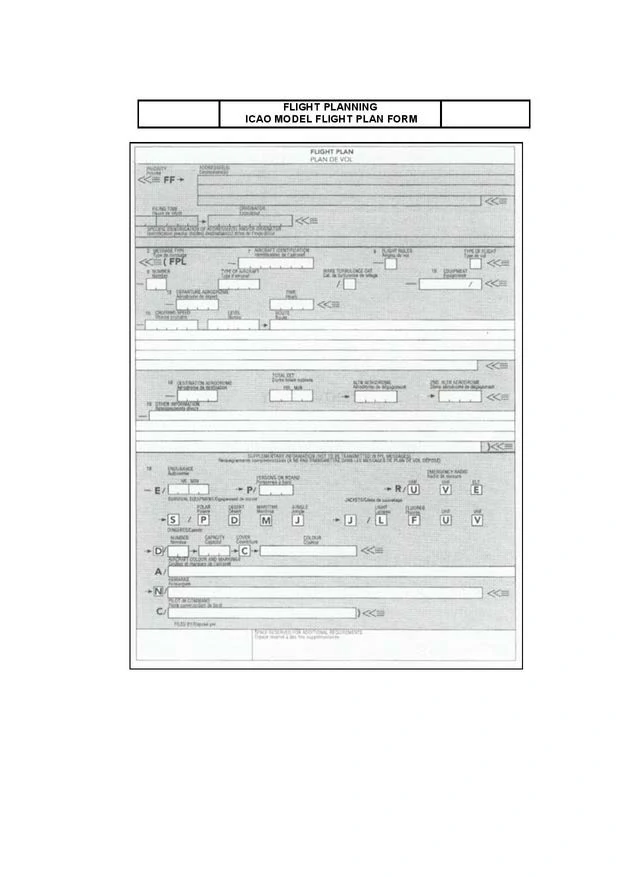

When an ATC flight plan is submitted for a flight outside designated ATS routes, points included in Item 15 (route) should not normally be at intervals of more than:

Accepted Answer

30 minutes flying time or 370 km

Answer

20 minutes flying time or 150 km

Answer

15 minutes flying time or 100 km

Answer

1 hour flying time or 500 km

Question 6

See Flight planning Manual SEP 1 Figure 2.3 Table 2.3.1. Using the Power Setting Table, for the single engine aeroplane, determine the cruise TAS and fuel flow (lbs/hr) with full throttle and cruise lean mixture in the following conditions. Given: OAT: 3°C; Pressure altitude: 6000 ft; Power: Full throttle / 21,0 in/Hg./ 2100 RPM

Accepted Answer

134 kt and 55,7 lbs/hr

Answer

136 kt and 56,9 lbs/hr

Answer

125 kt and 55,7 lbs/hr

Answer

131 kt and 56,9 lbs/hr

Question 7

Refer to the General Student Pilot Route Manual - VFR Chart ED-4. Flying VFR from VILLINGEN (48°03.5'N, 008°27.0'E) to FREUDENSTADT (48°28.0'N, 008°24.0'E) determine the magnetic course.

Accepted Answer

355°

Answer

176°

Answer

185°

Answer

004°

Question 8

Refer to the Student Pilot Route Manual - PARIS CDG Plate 20-3: Planning an IFR-flight from Paris (Charles de Gaulle) RWY 27 to London. Given: Distance from PARIS Charles-de-Gaulle to top of climb 50 NM Determine the distance from the top of climb (TOC) to ABB 116.6.

Accepted Answer

24.5 NM

Answer

31 NM

Answer

36.5 NM

Answer

33 NM

Question 9

Given: Distance from departure to destination 95 NM True track 105 W/V 060/15 TAS 140 kt What is the distance of the PET from the departure point?

Accepted Answer

51 NM

Answer

47,5 NM

Answer

82 NM

Answer

44 NM

Question 10

Which navigation aid is located in position 48°55'N, 009°20'E?

Accepted Answer

VOR/DME

Answer

NDB

Answer

VOR

Answer

TACAN

Exam questions Flight Planning and Monitoring - ATPL - Airline Transport Pilot license

ATPL - Airline Transport Pilot license: Flight Planning and Monitoring 10 Questions no time limit
